800x480 Resolution 4.3 Inch LCD Screen RGB Interface Industrial Display Screens

    Buy cheap 800x480 Resolution 4.3 Inch LCD Screen RGB Interface Industrial Display Screens from wholesalers

    Buy cheap 800x480 Resolution 4.3 Inch LCD Screen RGB Interface Industrial Display Screens from wholesalers
    • Buy cheap 800x480 Resolution 4.3 Inch LCD Screen RGB Interface Industrial Display Screens from wholesalers

    800x480 Resolution 4.3 Inch LCD Screen RGB Interface Industrial Display Screens

    Ask Lasest Price
    Brand Name : HG
    Model Number : HG043WV018T01
    Certification : ROHS/CE/ISO9001
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 350Kpcs/month
    Delivery Time : 7-15working days
    • Product Details
    • Company Profile

    800x480 Resolution 4.3 Inch LCD Screen RGB Interface Industrial Display Screens

    4.3-inch LCD screen is an RGB interface, TFT, full Angview, 800*480 resolution industrial LCD display

    Product Description

    4.3-inch LCD screen is an RGB interface, TFT, full Angview, 800*480 resolution industrial LCD display, Suitable for industrial equipment

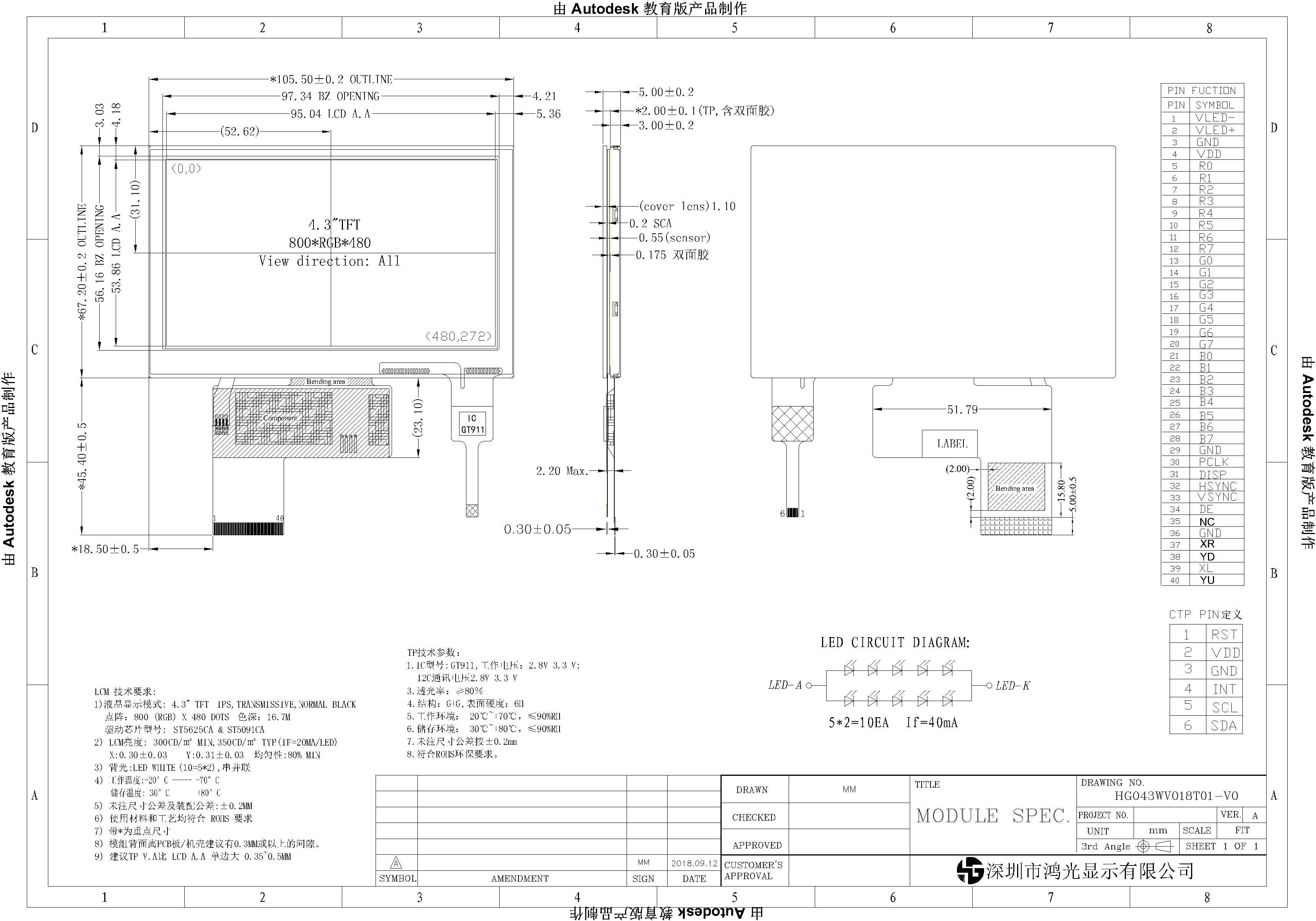

    Product parameter details

    ModelHG043WV018T01Application industrycommercial installation
    Size4.3 inchArrangement800*480
    Display size95.04mm*53.86mmExternal dimensions105.5mm*67.2mm*5.0mm
    Viewing AngleALLLuminance

    350cd/m2(customizable)

    Contrast ratio800NTSC70%
    Signal typesRGB interface 40PIN
    TemperatureOperating temperature in: -20℃ ~70℃, storage temperature: -30℃ ~80℃
    TP structureG+GCover plate1.1mm Corning III
    TP ICGT911TP interfaceI²C
    Remark:

    Description of products

    TFT is 4.3-inch LCM+CTP, the resolution is 800*480, and the effect is IPS.

    It is composed of TFT LCD panel, driver IC, FPC, backlight source and CTP.

    Using RGB-24 channel interface 40PIN, is 800*480 resolution standard screen series full view industrial LCD display;

    It can work at -20℃~70℃, storage temperature: -30℃~80℃;

    This product is widely used in industrial control, medical, handheld, security, vehicle, instrumentation and other related products

    All products are available with or without touch and industrial drive boards, no matter what configuration you choose,

    Can be customized according to your requirements (can be customized backlight, FPC, touch screen, industrial drive board)

    Comply with RoHS and CE certification standards;

    If you can't find a suitable one, please contact us for a recommendation.


    800x480 Resolution 4.3 Inch LCD Screen RGB Interface Industrial Display Screens

    Packaging and transportation

    Packaging details:

    1. All products are packaged correctly to ensure safety.

    2. For small-size products, we use the tray = carton.

    3. For larger sizes, we use knife cards + foam + cartons.

    4. We can also design packaging according to customer requirements.

    Transport

    1. Through express delivery (3-7 working days),

    2. Marine transportation (15-30 days), suitable for conventional mass production.

    3. Air transport (4-5 days), from airport to airport.


    800x480 Resolution 4.3 Inch LCD Screen RGB Interface Industrial Display Screens
