    Portable 4.3 Inch RGB TFT Display Full View 800x480 For Handheld Devices

    Ask Lasest Price
    Brand Name : HG
    Model Number : HG043WV016
    Certification : ROHS/CE/ISO9001
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 300Kpcs/month
    Delivery Time : 7-15working days
    • Product Details
    • Company Profile

    Portable 4.3 Inch RGB TFT Display Full View 800x480 For Handheld Devices

    HG043WV016: 4.3-inch is an RGB portable TFT display with a TFT, full-view view and 800 * 480 resolution for handheld devices

    Product Description

    4.3-inch is an RGB portable TFT display with a TFT, full-view view and 800 * 480 resolution for handheld devices

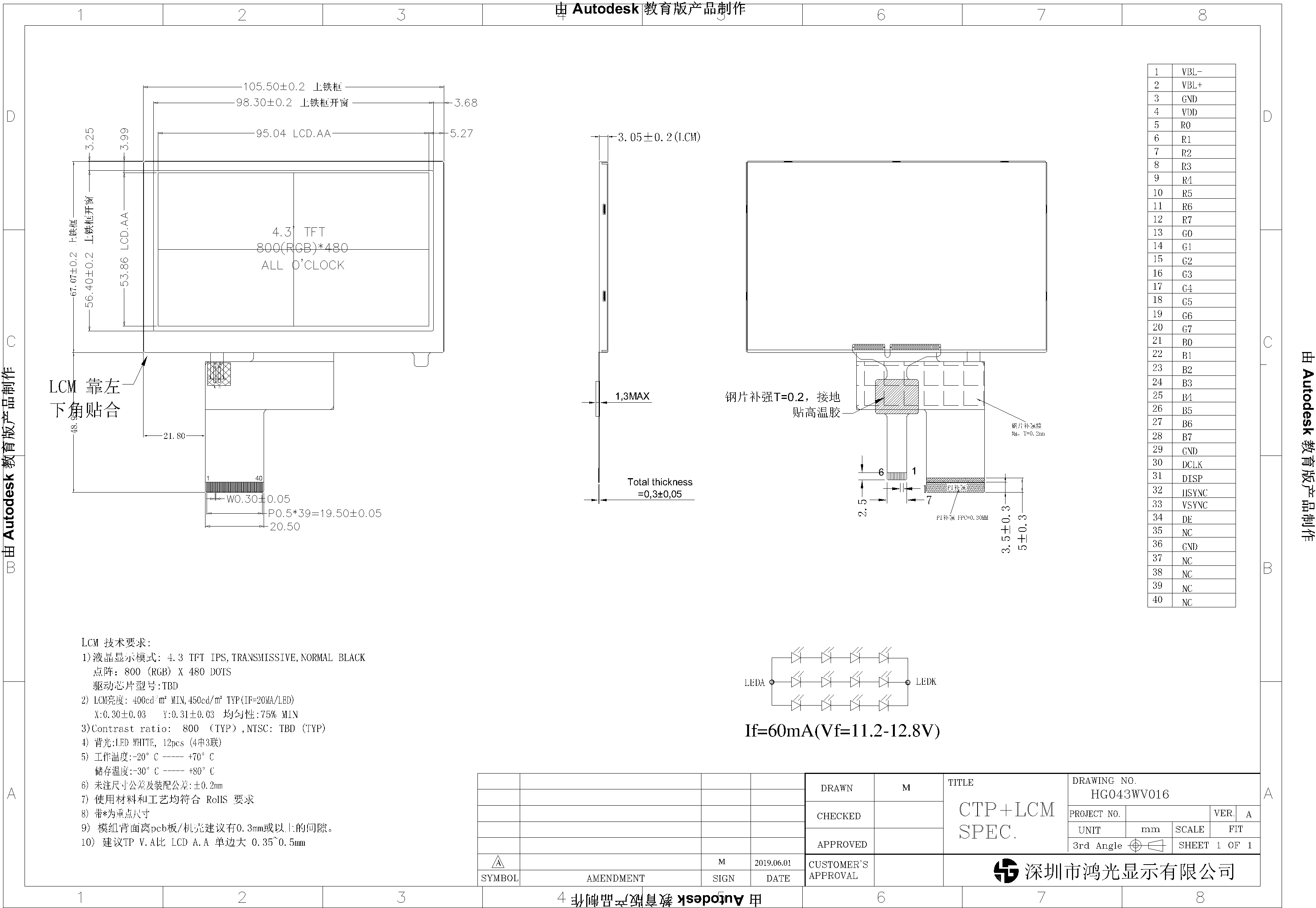

    Product parameter details

    ModelHG043WV016Application industryhandheld device
    Size4.3 inchArrangement800*480
    Display size95.04mm*53.86mmExternal dimensions105.5mm*67.07mm*3.05mm
    Viewing AngleALLLuminance450cd/m2(customizable)
    Contrast ratio800NTSC70%
    Signal typesRGB-24 interface 40PIN
    Temperature

    Operating temperature: -20℃ ~ + 70℃

    storage temperature: -30℃ ~ + 80℃

    Remark

    Instead of 480 * 272 TN, the resolution is upgraded

    to 800 * 480, with a full perspective


    Description of products

    TFT 4.3-inch HG043WV016 portable TFT display, 800*480 resolution,

    Display effect is IPS, can be used for handheld devices, can also do full fitting process;

    It is composed of TFT LCD panel, driver IC, FPC and backlight.

    Can work in -20℃~70℃, storage temperature: -30℃~80℃;

    This product is widely used in industrial control, medical, handheld, security, vehicle, VR, instrumentation and other related products

    All products are available with or without touch and industrial drive boards, no matter what configuration you choose,

    Can be customized according to your requirements (can be customized backlight, FPC, touch screen, industrial drive board)

    Comply with RoHS and CE certification standards;

    If you can't find a suitable one, please contact us for a recommendation.



    Packaging and transportation


    Packaging details:

    1.All products are packaged correctly to ensure safety.

    2.For small-size products, we use the tray = carton.

    3.For larger sizes, we use knife cards + foam + cartons.

    4. We can also design packaging according to customer requirements.


    Transport

    1. Through express delivery (3-7 working days),

    2. Marine transportation (15-30 days), suitable for conventional mass production.

    3. Air transport (4-5 days), from airport to airport.
