Product description

1. synopsis

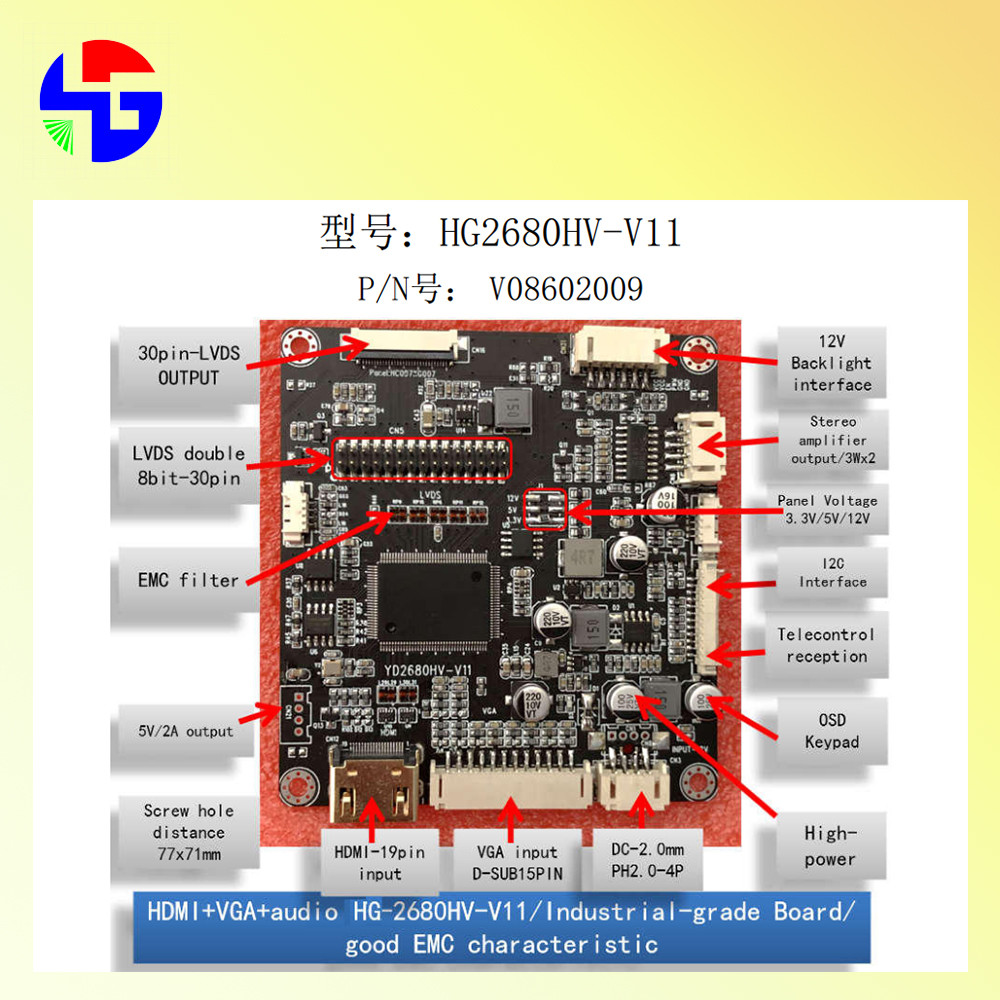

HGYD2680HV-V11 LCD drive panel is mainly designed for TFT LCD screens, suitable for LCD screens and some other flat-panel screens.

ØInput signal type: digital HD (HDMI), analog (RGB, VGA), PAL / NTSC standard composite video / VIDEO (default NC).

ØThe board card supports a wide voltage input of 8V~25V; the typical value is 12V (when the screen power supply is 12V, the board card power supply must be 12V).

ØWide temperature working range: -20℃ ~ + 70℃.

ØIt can support the optional screen parameter 800x480~~190x1200.

ØThe card comes with LED backlight drive circuit; support for small and medium size LED backlight 9~25V voltage drive.

ØThe card comes with a T-CON circuit to directly drive a small-and medium-size LVDS / TTL LCD without a T-CON.

ØThe Backlighting power supply supports 5V / 12V (default 12V), and supports the PWM duty cycle to adjust the backlight brightness.

ØDisplay and output interface: LVDS double 8BIT, TTL18bit / 24bit

ØHigh-definition HDMI, analog RGB (VGA) resolution adapted to PC (personal computer) graphics card: 480x272, VGA, SVGA, XGA, SXGA, WXGA +, UXGA, 1920X1200 and other VESA standard signals;

ØFeatures: This card has simple operation and reliable performance.

Product parameter details

Packaging and transportation

Packaging details

1. All products are packaged in the correct packaging for safety.

2. For small size products, we use tray = cartons.

3. For larger sizes, we use knife cards + foam + cartons.

4. We can also design packaging for customer request.

Transport

1. By express (3-7 working days), suitable for emergency time and small amounts.

2. Marine transportation (15-30 days), suitable for routine mass production.

3. Air transport (4-5 days), from airport to airport.
