Brand Name : | HG |
Model Number : | HG070WS045 |
Certification : | ROHS/CE/ISO9001 |
Price : | Negotiation |
Payment Terms : | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Supply Ability : | 350KPCS/Mouth |
Delivery Time : | 7-15working days |
HG070WS045 7.0 inch is an LVDS-4 channel interface 40PIN, TFT, full viewing Angle, 1024*600 resolution LCD TFT display, suitable for industrial control equipment.
Product parameter details
Model | HG070WS045 | Application industry | Industrial control equipment |
Size | 7.0 Inch | Arrangement | 1024*600 |

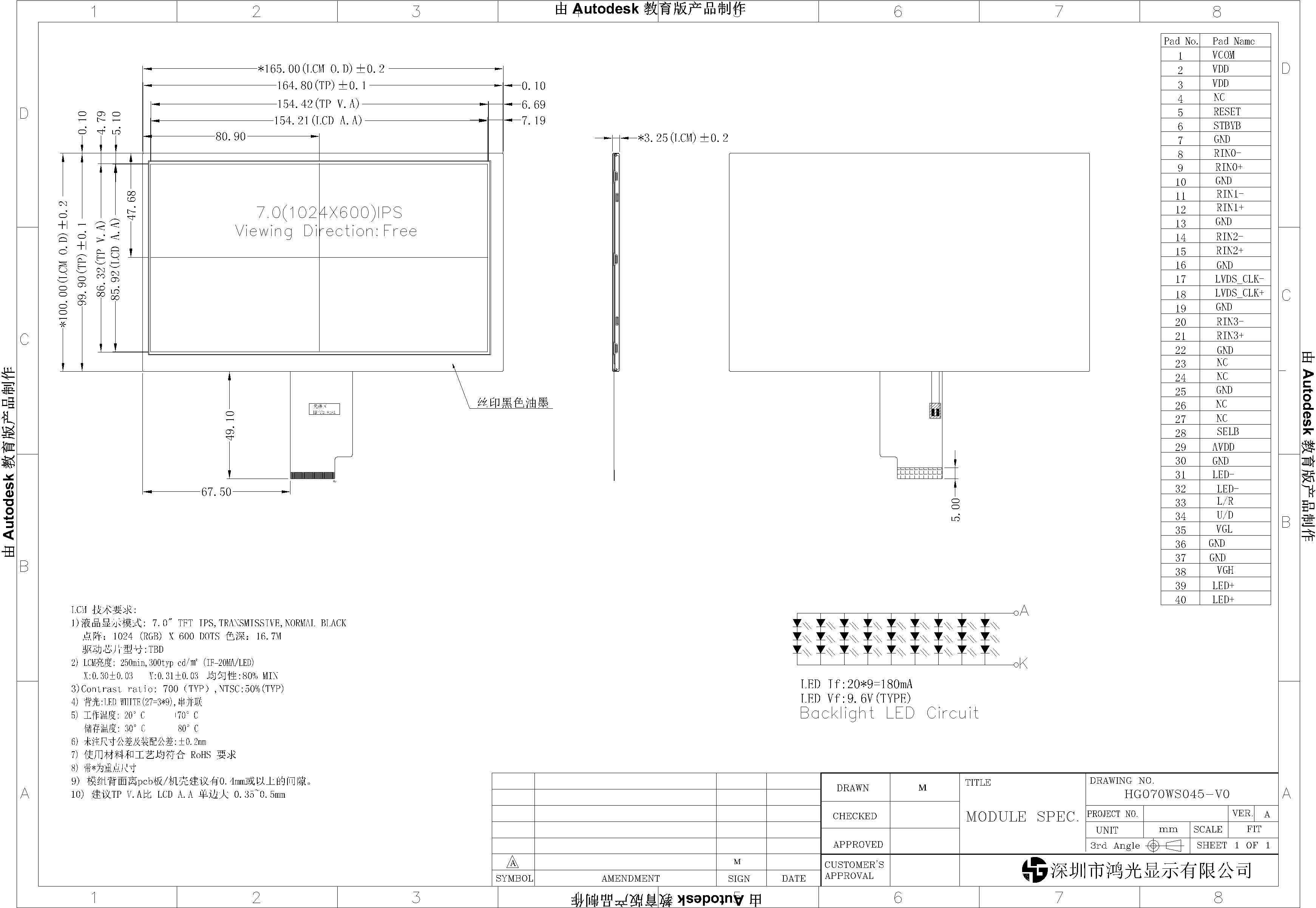

Display size | 154.21mm*85.92mm | External dimensions | 165mm*100mm*3.25mm |
Viewing Angle | ALL | Luminance | 300cd/m2(customizable) |
Contrast ratio | 700 | NTSC | 50% |
Signal types | LVDS-4,40PIN | ||
Temperature | Operating temperature:-20℃~70℃,storage temperature:-30℃~80℃ | ||
Remark | Standard series LCD TFT display |
Product description
HG070WS045 is a projection row color active Matrix LCD screen
A TFT LCD panel, driver IC, FPC, backlight composition
It is a standard series full view LCD TFT display with 1024*600 resolution
Using LVDS-4 channel interface 40PIN, can work at -20℃~70℃, storage temperature: -30℃~80℃;
This product is widely used in industrial control, medical, handheld, security, vehicle, instruments and other related products
All products can be made with or without touch and industrial drive boards, whatever configuration you choose,
Can be customized according to your requirements (can be customized backlight, FPC, touch screen, industrial drive board)
Comply with RoHS and CE certification standards
If you cannot find a suitable one, please contact us for a recommendation
Packing and transportation
Packing details:
1. All products are packed in the correct way to ensure safety.
2. For small size products, we use pallets = cartons.
3. For larger sizes, we use knife card + foam + carton.
4. We can also design the packaging according to customer's requirement.
Transport:
1. By express (3-7 working days), suitable for emergency time and small amount.
2. Sea transportation (15-30 days), suitable for routine mass production.
3. Air freight (4-5 days), from airport to airport.
![]() |
